A6 Wide Gel System
- 最大電泳膠：23 x 25 cm
- 檢體數：25-500
- 外部尺寸：38 x 35 x 11 (H)cm
- 電泳Buffer：3000 ml
- 非常適用於大量檢體實驗
- Thermo owl獨家Millipede鑄膠系統，鑄膠超方便、簡單且快速，可直接於電泳槽內進行鑄膠，也可選購EasyCast外部注膠系統。
- SuperSafe軌道式防失誤上蓋，不會裝錯。
- 具UV可穿透式 (UVT) Gel Tray
- 具水平調整功能
- 一體成形Comb，堅固穩定，不會跑歪
- 具快速load Comb可供選購，多爪分注吸管可直接loading操作
整組標準配件
- Buffer Chamber with Three Point Leveling Base
- SuperSafe Lid with Attached Power Supply Leads
- U.V. Transmissible (UVT) Gel Tray with Gasketed End Gates
- 4 Combs: (2) 25 Well and (2) 50 Well, 1.5 mm Thick
| 加選購齒梳Comb | ||||||||
|---|---|---|---|---|---|---|---|---|
| CAT. NO. | TYPE | Comb | Loading Volumes建議 | |||||
| 齒數 | 厚度 | 寬度 | 0.25cm | 0.5cm | 0.75cm | 1.0cm | ||
| D3-MT2C | Micro Well | 50 (2X) | 1.0mm | 3mm | 2µl | 8µl | 14µl | 19µl |
| D3-MT2D | Micro Well | 50 (2X) | 1.5mm | 3mm | 3µl | 12µl | 20µl | 29µl |
| D3-MTC | Micro Well | 25 (1X) | 1.0mm | 7.5mm | 6µl | 20µl | 34µl | 48µl |
| D3-MTD | Micro Well | 25 (1X) | 1.5mm | 7.5mm | 8µl | 30µl | 51µl | 72µl |
| D3-WALL | Wall | 1 | 1.5mm | 230 | ||||
| 加選購配件 | Cat. No. |
|---|---|
| Replacement End Gates (1 pair.) | A3-1-EG |
| Replacement Gaskets (1 pair.) | A3-GK-1 |
| UVT Gel Tray with Gasketed End Gates | A6-UVT |
| Casting Dam, (L) 23 cm | DAM-23 |
| Thermo Scientific Owl Power Supply Leads | PSL-5 |
A1 Large Gel System
- 最大電泳膠：13 x 25 cm
- 檢體數：8-150
- 外部尺寸：21.5 x 32.5 x 11 (H)cm
- 電泳Buffer：1600 ml
- 最實用、應用範圍最廣的大型電泳系統
- Thermo owl獨家Gator鑄膠系統，鑄膠超方便、簡單且快速，可直接於電泳槽內進行鑄膠，也可選購EasyCast外部注膠系統。
- SuperSafe軌道式防失誤上蓋，不會裝錯。
- 具UV可穿透式 (UVT) Gel Tray
- 具水平調整功能
- 一體成形Comb，堅固穩定，不會跑歪
- 具快速load Comb可供選購，多爪分注吸管可直接loading操作
整組標準配件
- Buffer Chamber with Three Point Leveling Base
- SuperSafe Lid with Attached Power Supply Leads
- U.V. Transmissible (UVT) Gel Tray with Gasketed End Gates
- 3 Combs: 12, 16, and 20 Well, 1.5 mm Thick
| 加選購齒梳Comb | ||||||||
|---|---|---|---|---|---|---|---|---|
| CAT. NO. | TYPE | Comb | Loading Volumes建議 | |||||
| 齒數 | 厚度 | 寬度 | 0.25cm | 0.5cm | 0.75cm | 1.0cm | ||
| A1-12C | Standard | 12 | 1.0mm | 8.7mm | 7µl | 23µl | 39µl | 55µl |
| A1-12D | Standard | 12 | 1.5mm | 8.7mm | 10µl | 34µl | 59µl | 83µl |
| A1-16C | Standard | 16 | 1.0mm | 6.1mm | 5µl | 16µl | 27µl | 39µl |
| A1-16D | Standard | 16 | 1.5mm | 6.1mm | 7µl | 24µl | 41µl | 58µl |
| A1-20C | Standard | 20 | 1.0mm | 4.5mm | 3µl | 12µl | 20µl | 29µl |
| A1-20D | Standard | 20 | 1.5mm | 4.5mm | 5µl | 18µl | 30µl | 43µl |
| A1-24C | Standard | 24 | 1.0mm | 3.5mm | 3µl | 9µl | 16µl | 22µl |
| A1-24D | Standard | 24 | 1.5mm | 3.5mm | 4µl | 14µl | 24µl | 33µl |
| A1-8C | Standard | 8 | 1.0mm | 13.9mm | 10µl | 36µl | 63µl | 89µl |
| A1-8D | Standard | 8 | 1.5mm | 13.9mm | 16µl | 55µl | 95µl | 133µl |
| A1-MTC | Micro Well | 14 (1 x) | 1.0mm | 7.2mm | 5µl | 19µl | 32µl | 46µl |
| A1-MTD | Micro Well | 14 (1 x) | 1.5mm | 7.2mm | 8µl | 28µl | 49µl | 69µl |
| A1-PREP | Prep | 2 | 1.5mm | 117/5mm | 132/6µl | 462/20µl | 791/34µl | 1122/48µl |
| A1-RL-25C | 25(2X) | 1.0mm | 2.5mm | 2µl | 7µl | 12µl | 17µl | |
| A1-RL-25D | 25(2X) | 1.5mm | 2.5mm | 3µl | 11µl | 18µl | 26µl | |
| A1-RL-9C | 9(1X) | 1.0mm | 7.2mm | 5µl | 19µl | 32µl | 46µl | |
| A1-RL-9D | 9(1X) | 1.5mm | 7.2mm | 8µl | 28µl | 49µl | 69µl | |
| A1-WALL | Wall | 1 | 1.5mm | 130mm | ||||
| 加選購配件 | Cat. No. |
|---|---|
| Complete System with Buffer Exchange Ports | A1-BP |
| Replacement End Gates (1 pair.) | A1-EG |
| Replacement Gaskets (1 pair.) | A1-GK |
| UVT Gel Tray with Gasketed End Gates | A1-UVT |
| Thermo Scientific Owl Casting Dams | DAM-13 |
| Thermo Scientific Owl Power Supply Leads | PSL-5 |
A3-1 Wild Gel System
- 最大電泳膠：23 x 40 cm
- 檢體數：25 - 600
- 外部尺寸：32 x 53 x 11 (H)cm
- 電泳Buffer：4500 ml
- 最大型的水平電泳槽，特別適用於植物genomics
- Thermo owl獨家Gator鑄膠系統，鑄膠超方便、簡單且快速，可直接於電泳槽內進行鑄膠，也可選購EasyCast外部注膠系統。
- SuperSafe軌道式防失誤上蓋，不會裝錯。
- 具UV可穿透式 (UVT) Gel Tray
- 具水平調整功能
- 一體成形Comb，堅固穩定，不會跑歪
- 具快速load Comb可供選購，多爪分注吸管可直接loading操作
整組標準配件
- Buffer Chamber with Three Point Leveling Base
- SuperSafe Lid with Attached Power Supply Leads
- U.V. Transmissible (UVT) Gel Tray with Gasketed End Gates
- 4 Combs: (2) 25 Well and (2) 50 Well, 1.5 mm Thick
- Built in Buffer Exchange Ports
| 加選購齒梳Comb | ||||||||
|---|---|---|---|---|---|---|---|---|
| CAT. NO. | TYPE | Comb | Loading Volumes建議 | |||||
| 齒數 | 厚度 | 寬度 | 0.25cm | 0.5cm | 0.75cm | 1.0cm | ||
| D3-MT2C | Micro Well | 50 (2X) | 1.0mm | 3mm | 2µl | 8µl | 14µl | 19µl |
| D3-MT2D | Micro Well | 50 (2X) | 1.5mm | 3mm | 3µl | 12µl | 20µl | 29µl |
| D3-MTC | Micro Well | 25 (1X) | 1.0mm | 7.5mm | 6µl | 20µl | 34µl | 48µl |
| D3-MTD | Micro Well | 25 (1X) | 1.5mm | 7.5mm | 8µl | 30µl | 51µl | 72µl |
| D3-WALL | Wall | 1 | 1.5mm | 230 | ||||
| 加選購配件 | Cat. No. |
|---|---|
| Replacement End Gates (1 pair.) | A3-1-EG |
| Replacement Gaskets (1 pair.) | A3-GK-1 |
| UVT Gel Tray with Gasketed End Gates | A3-UVT-1 |
| Casting Dam, (L) 23 cm | DAM-23 |
| Thermo Scientific Owl Power Supply Leads | PSL-5 |
A5 Large Gel System with Built-In Recirculation
- 最大電泳膠：20 x 25 cm
- 檢體數：8 - 432
- 外部尺寸：28 x 38 x 15 (H)cm
- 電泳Buffer：2000 ml
- 特別針對高解析度genomic應用設計之系統
- Thermo owl獨家Millipede鑄膠系統，鑄膠超方便、簡單且快速，可直接於電泳槽內進行鑄膠，也可選購EasyCast外部注膠系統。
- SuperSafe軌道式防失誤上蓋，不會裝錯。
- 具UV可穿透式 (UVT) Gel Tray
- 具水平調整功能
- 一體成形Comb，堅固穩定，不會跑歪
- 具快速load Comb可供選購，多爪分注吸管可直接loading操作
整組標準配件
- Buffer Chamber with Three Point Leveling Base
- SuperSafe Lid with Attached Power Supply Leads
- U.V. Transmissible (UVT) Gel Tray with Gasketed End Gates
- 3 Combs: 16, 24, & 36 Well 1.5 mm Thick
| 加選購齒梳Comb | ||||||||
|---|---|---|---|---|---|---|---|---|
| CAT. NO. | TYPE | Comb | Loading Volumes建議 | |||||
| 齒數 | 厚度 | 寬度 | 0.25cm | 0.5cm | 0.75cm | 1.0cm | ||
| A2-12C | Standard | 12 | 1.0mm | 14.5mm | 11µl | 38µl | 65µl | 92µl |
| A2-12D | Standard | 12 | 1.5mm | 14.5mm | 16µl | 57µl | 98µl | 139µl |
| A2-16C | Standard | 16 | 1.0mm | 10.5mm | 8µl | 27µl | 47µl | 66µl |
| A2-16D | Standard | 16 | 1.5mm | 10.5mm | 12µl | 41µl | 70µl | 99µl |
| A2-20C | Standard | 20 | 1.0mm | 8mm | 6µl | 21µl | 36µl | 51µl |
| A2-20D | Standard | 20 | 1.5mm | 8mm | 9µl | 32µl | 54µl | 77µl |
| A2-24C | Standard | 24 | 1.0mm | 6.5mm | 5µl | 17µl | 29µl | 41µl |
| A2-24D | Standard | 24 | 1.5mm | 6.5mm | 7µl | 25µl | 43µl | 61µl |
| A2-28C | Standard | 28 | 1.0mm | 5mm | 4µl | 14µl | 23µl | 33µl |
| A2-28D | Standard | 28 | 1.5mm | 5mm | 6µl | 20µl | 35µl | 50µl |
| A2-32C | Standard | 32 | 1.0mm | 4mm | 3µl | 11µl | 19µl | 27µl |
| A2-32D | Standard | 32 | 1.5mm | 4mm | 5µl | 17µl | 29µl | 41µl |
| A2-36C | Standard | 36 | 1.0mm | 3.5mm | 3µl | 10µl | 17µl | 24µl |
| A2-36D | Standard | 36 | 1.5mm | 3.5mm | 4µl | 15µl | 25µl | 35µl |
| A2-8C | Standard | 8 | 1.0mm | 22.7mm | 17µl | 60µl | 102µl | 145µl |
| A2-8D | Standard | 8 | 1.5mm | 22.7mm | 26µl | 89µl | 153µl | 217µl |
| A2-MT2C | Micro Well | 42 (2x) | 1.0mm | 2.5mm | 2µl | 7µl | 12µl | 17µl |
| A2-MT2D | Micro Well | 42 (2x) | 1.5mm | 2.5mm | 3µl | 11µl | 18µl | 26µl |
| A2-MTC | Micro Well | 21 (1x) | 1.0mm | 7.2mm | 5µl | 19µl | 32µl | 46µl |
| A2-MTD | Micro Well | 21 (1x) | 1.5mm | 7.2mm | 8µl | 28µl | 49µl | 69µl |
| A2-PREP | Prep | 2 | 1.5mm | 187.1/5mm | 220/5.5µl | 640/20µl | 1310/34µl | 1860/48µl |
| A2-RL-18D | Micro Well | 18(1x) | 1.5mm | 7.2mm | 8µl | 28µl | 49µl | 69µl |
| A2-WALL | Wall | 1 | 1.5 | |||||
| 加選購配件 | Cat. No. |
|---|---|
| Replacement End Gates (1 pair.) | A2-EG |
| Replacement Gaskets (1 pair.) | A2-GK |
| Multi Load UVT Gel Tray with 12 Combs (A2-RL-18D) | A2-RL-12 |
| Multi Load UVT Gel Tray with 24 Combs (A2-RL-18D) | A2-RL-24 |
| Multi Load UVT Gel Tray with Gasketed End Gates with 24 Slots | A2-RL-UVT |
| UVT Gel Tray with Gasketed End Gates | A2-UVT |
| Bubble Level | BBL-1 |
| Casting Dam, (L) 20 cm | DAM-20 |
| Thermo Scientific Owl Power Supply Leads | PSL-5 |

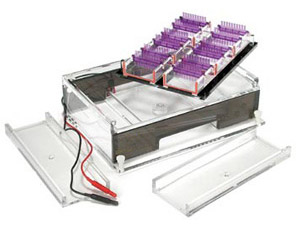

A2-OK Multiple Gel System
- 最大電泳膠：6片7 x 8 cm
- 檢體數：5 - 144
- 外部尺寸：28 x 37.5 x 10 (H)cm
- 電泳Buffer：2300 ml
- 最佳教學電泳系統
- Thermo owl獨家Gator鑄膠系統，鑄膠超方便、簡單且快速，可直接於電泳槽內進行鑄膠，也可選購EasyCast外部注膠系統。
- SuperSafe軌道式防失誤上蓋，不會裝錯。
- 具UV可穿透式 (UVT) Gel Tray
- 具水平調整功能
- 一體成形Comb，堅固穩定，不會跑歪
- 具快速load Comb可供選購，多爪分注吸管可直接loading操作
整組標準配件
- Buffer Chamber with Three Point Leveling Base
- SuperSafe Lid with Attached Power Supply Leads
- 6 EasyCast U.V. Transmissible (UVT) Gasketed Gel Trays
- 12 Combs: 10 Well 1.0/1.5 mm Thick, Double Sided
- 2 External Multiple Gel Casters
- Gel Tray Holder
| 加選購齒梳Comb | ||||||||
|---|---|---|---|---|---|---|---|---|
| CAT. NO. | TYPE | Comb | Loading Volumes建議 | |||||
| 齒數 | 厚度 | 寬度 | 0.25cm | 0.5cm | 0.75cm | 1.0cm | ||
| B1A-10 | 雙面 | 10 | 1.0mm 1.5mm |
4.8mm 4.8mm |
4µl 5µl |
13µl 19µl |
21µl 32µl |
30µl 46µl |
| B1A-12 | 雙面 | 12 | 1.0mm 1.5mm |
3.7mm 3.7mm |
3µl 4µl |
10µl 14µl |
16µl 25µl |
23µl 35µl |
| B1A-5C | Standard | 5 | 1.0mm | 11.3mm | 8µl | 30µl | 51µl | 72µl |
| B1A-5D | Standard | 5 | 1.5mm | 11.3mm | 32µl | 64µl | 95µl | 127µl |
| B1A-6 | 雙面 | 6 | 1.0mm 1.5mm |
9.1mm 9.1mm |
17µl 26µl |
34µl 51µl |
51µl 77µl |
68µl 102µl |
| B1A-8 | 雙面 | 8 | 1.0mm 1.5mm |
6.4mm 6.4mm |
5µl 7µl |
17µl 25µl |
29µl 43µl |
41µl 61µl |
| B1A-PREP | Prep | 2 | 1.5mm | 57/5mm | 64/6µl | 225/19µl | 385/32µl | 545/46µl |
| 加選購配件 | Cat. No. |
|---|---|
| Gel Tray Holder | A2-OT |
| External Caster (Trays not included.) | B1A-CST |
| Replacement Gaskets (1 pair.) | B1A-GK |
| Gasketed EasyCast UVT Gel Tray | B1A-UVT |
| Thermo Scientific Owl Power Supply Leads | PSL-5 |
